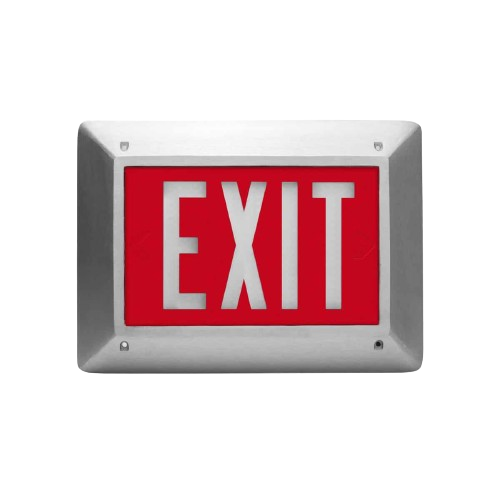

BUILT FOR THE TOUGHEST ASSIGNMENTS: The Ironclad® Zero-Watt for INH provides rugged cast aluminum heavy duty frames with a 3/8” polycarbonate lens for the most demanding institutional applications. Zero-Watt is recyclable at the end of it’s useful life.
Construction:
- 6” high letters with 3/4” stroke available with Red, Green, or Black background suitable for use in hazardous atmospheres and damp locations. Meets NEC Article 500, Class 1, 11 and 111 conditions

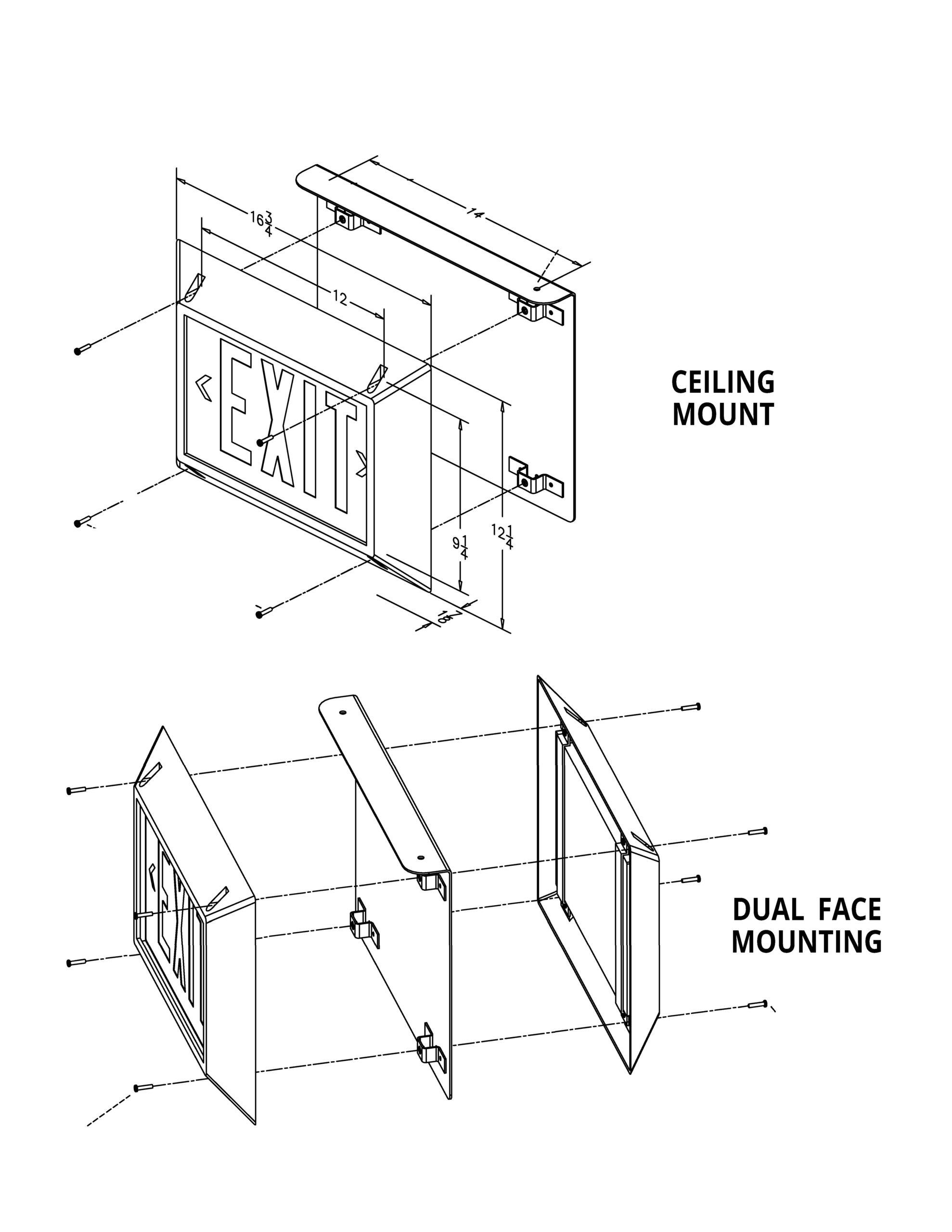

- Heavy cast aluminum frame single and double face, mounting bracket included with double face sign
- Beveled edges and rounded corners withstand high impacts

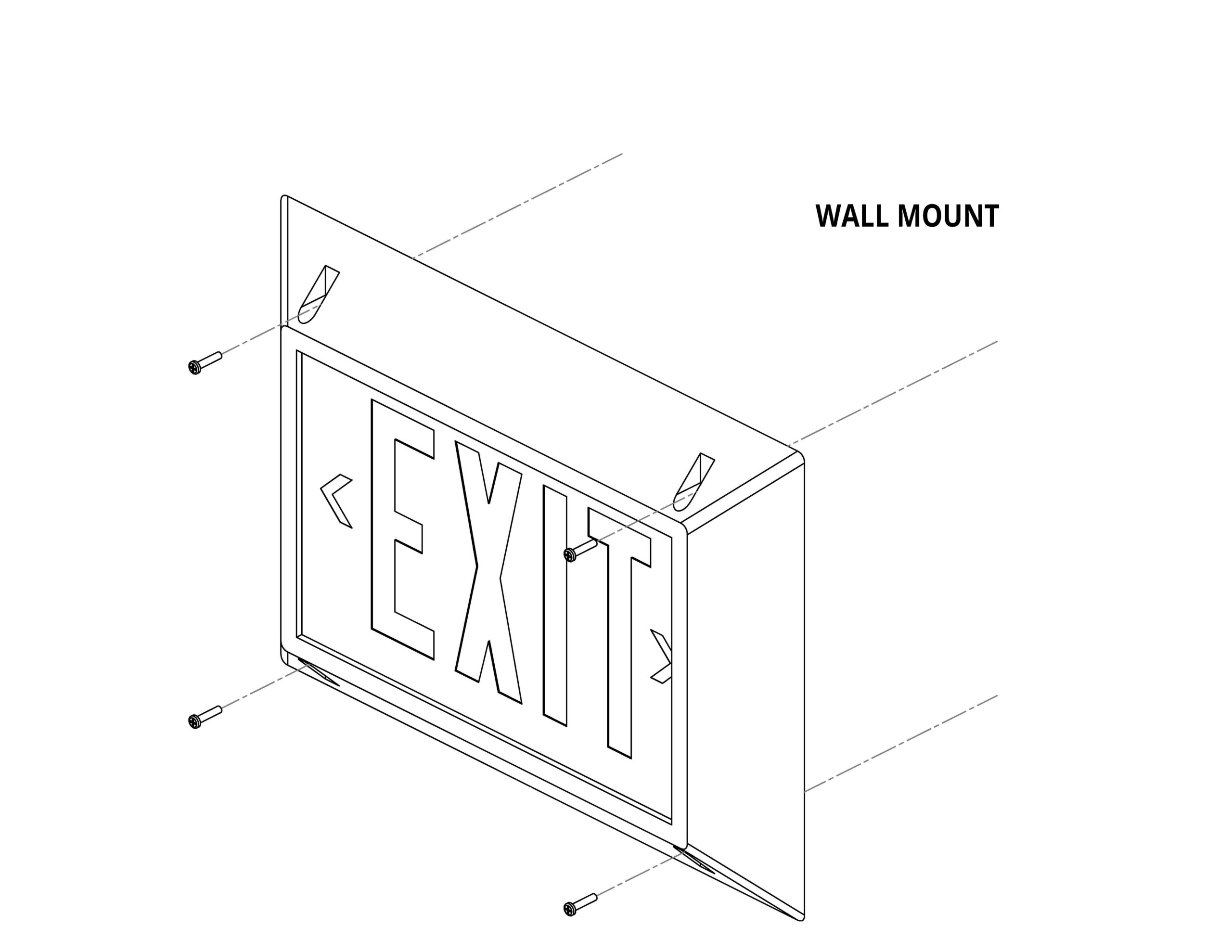

- Tamper proof mounting hardware prevents unauthorized removal
- Standard exterior finish, brushed aluminum with clear lacquer coating. Custom paint or anodized colors available
- Aluminum stencil face with field selectable chevron directional indicators
- Polycarbonate shield seals lamp compartment and prismatic refractor lens
- 3/8” clear polycarbonate face shield provided with mounting hardware
- Operating temperature -55°C to 80°C
- Available in service life ratings of 10 or 20 years
Electrical:
- Non-electrical, internally illuminated by sealed tritium gas light sources
- Requires no external light source, electrical power, wiring or batteries 100% reliable, maintenance free and always on
Illumination:
- Green light output for maximum visibility in emergency conditions 100 foot visibility rating
Certifications:
- Tested, approved and listed by Underwriters Laboratories to UL 924, and meets NFPA101 Life Safety Code
Warranty:
- Limited warranty for the rated life of the product
All Ratings:
