The Ironclad® RZ’s 5/8” profile provides a modern, inconspicuous LED exit sign with wall, canopy or pendant mounting options. Sophisticated electronics provide impressive energy efficiency consuming just 2 watts. Illumination of 18fL is 7 times the minimum code requirements with a unique refractive-pattern light guide that distributes the LED evenly for flawless legend uniformity. Fieldselectable top or end canopy mounting, snap-lock assembly and optional square pendant rod with matching slim profile adaptors and canopy, simplifies install and improves versatility.
- 5/8” Die Cast Aluminum. Available in Brushed Aluminum, White or Black finishes Other finishes available to order
- Single injection-molded frame assembly

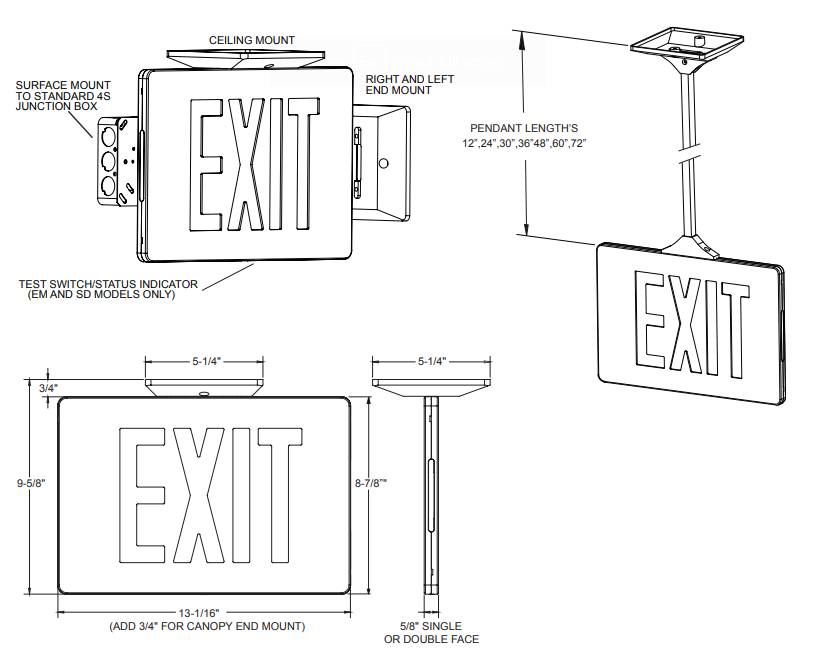

- Mounts to 4S Junction box in Wall, Canopy or Pendant mount • Snap fit housing design eliminates unsightly hardware
- Removable face (field selectable) Chevron directional indicators
- Oversized canopy enabling more secure mounting
- Low profile canopy for universal end or top mount
- 1⁄2” Extruded Aluminum matching Tube Pendant and adaptors.

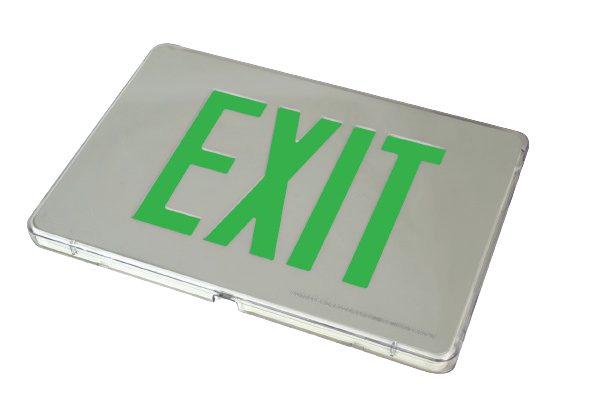

- Optional polycarbonate face shield with snap-fit installation ideal for vandal resistant and low level applications (U.L. listed for floor proximity installation)
- Also available with an additional remote powered sign
- 2W power consumption for both single and double face AC models.
- Battery backup models consume just 2.4 watts.
- Power supply are powered at less than 50% of their rated operating current ensuring minimal heat dissipation and predicated to maintain 80% luminosity after 20 years continuous operation.
- Self-Diagnostic Battery monitoring (EM models only) - Flashing LED when battery needs replacing
- 120 or 277 VAC (field selectable) input
- Circuitry: Zero current LVCO, Brownout Sensing & Line-Latch
- Optional functions available: Self-Test, Self-Diagnostics, Fire Alarm Interface, Flash in Emergency Mode or Continuous Flash in AC mode, Infrared Remote testing (up to 40 feet away), Dual AC input and 2W Remote Lamp Head Capacity.
- High Temperature Maintenance free, Nickel Metal Hydride battery with fuse protection.
- Battery Backup models are U.L. listed
- 3mm refractive light produces 7 times the minimum UL 924 requirement
- Red or Green LED with 6” letters and 3/4” stroke
- LED light source with 25+ year’s life expectancy
- UL and CSA listed damp locations, UL924 and CSA-C22.2 No. 141-15. NFPA 101 Life Safety Code, NFPA 70-NEC and OSHA
- California Energery Commission (CEC) Title 20 Compliant
- 5 Year Limited Warranty
All Ratings:
TLRT = Infrared Transmitter (order separately)
