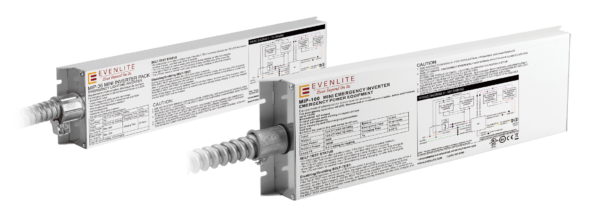

The Ironclad® MIP is a refined, fully featured Emergency Lighting Inverter in a traditional compact power pack format for installation versatility, suitable for mounting within, on or remotely to the desired emergency luminaries. Available in 100W model, the MIP caters to various lighting needs, from LED to Incandescent or Fluorescent loads. The MIP can be wired for Switched, Normally On, Normally-Off, or the groundbreaking Adaptive Dimming feature.
Construction:
- Slim and versatile extruded aluminum housing
- 21” lead wires with ½” flexible metallic conduit
- Suitable for use in plenum, damp and dry locations or grounded damp location rated luminaires
- Multi-function LED and Test Switch
Electrical:
- Pure Sine Wave AC pulse width modulated (PWM) output
- Automatic Voltage Input/Output select 120-277VA 50/60Hz
- Adaptive 0 – 10V dimming of connected loads
- Universal 120/277 VAC, 60Hz. Input/output
- Field Selectable Self-Test/Self Diagnostics. Preprogrammed Scheduled Self-Test will occur after 24 hours and up to 7 days after initial power on. Monthly tests will occur every 30 days after initial power on
- Annual tests will occur every 52 weeks after initial power on
- Supports Switched, Normally-ON, Normally-OFF or Adaptive Dimming input wiring
- Remote Mounting Distance of up to 1,000 ft
- Long Life, high capacity, maintenance-free Lithium-ion batter provides required 90 minutes of emergency duration and environmentally friendly end of life recycling
- Over voltage, over current, inrush current limiting, over temperature, short circuit, and open circuit protections
- Zero current LVCO ensures positive charge acceptance following extended battery discharge
- Brownout sensing assures emergency illumination during periods of low line voltage
- Can be derated for FEMA 2 Hours emergency duration
- 84% (MIP-100)
- 0.48A @ 120V (MIP-100)
- 35W (MIP-100)
- 100W (MIP-100)
- Maximum Pass through: 900W (MIP-100)
- Charging time: 12 hours (MIP-100)
- Charging current: 0.6A (MIP-100)
- Operating Temperature: 0-50C (32 – 122F)
Certification:
- Tested and Listed by Underwriters Laboratories in compliance with UL924 and Canadian CSA-C22.2 No. 141-15
- UL924 listed for field installation
- California Title 20 Certified
- Meets or exceeds NFPA101 Life Safety Code, NFPA 70-NEC and OSHA requirements
Warranty:
- 5 Year Limited Warranty
| Model | VA Rating |
|---|---|
| MIP - Mini Inverter Pack | 100 = 100 Watts/VA |
