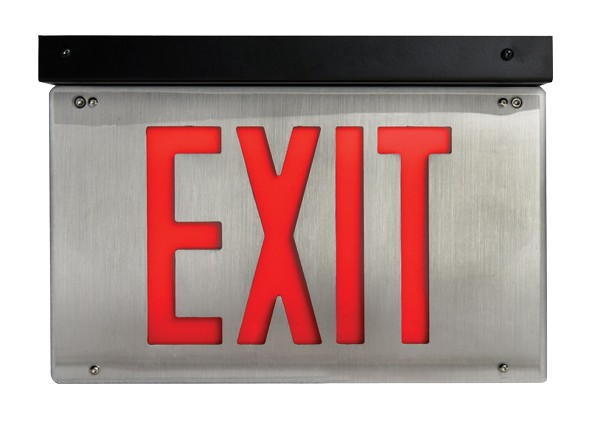

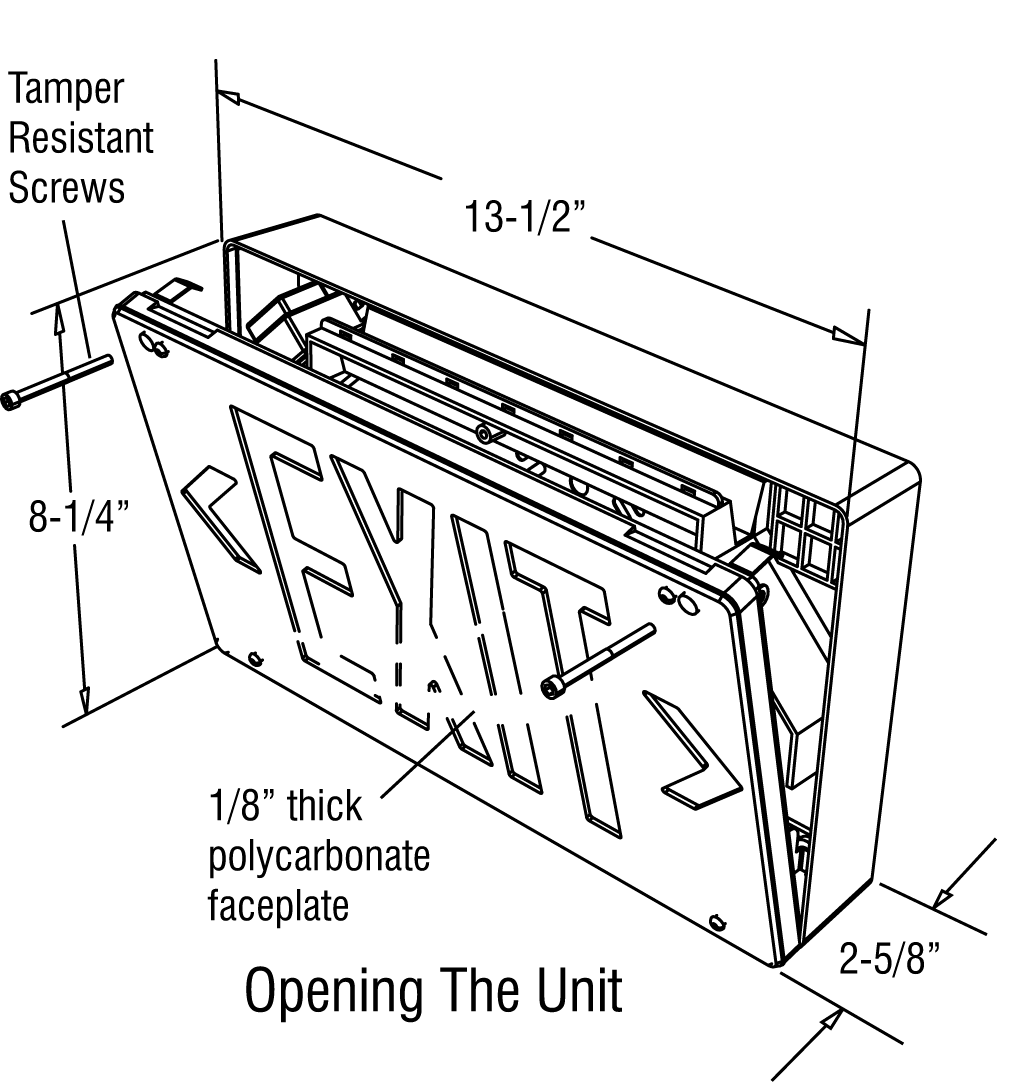

The Ironclad® Correctional provides the quality performance and appearance of the standard series LED exit sign enhanced with a durable 1/8” thick polycarbonate security faceplate cover, tamper resistant access screws and where required, a Heavy Duty mounting canopy.
Construction:
- Polycarbonate face shield
- Tamper resistant hardware
- Injection molded internal cavity
- Die cast aluminum housing with an 1/8” thick beveled edge
- Security cover and faceplate secured with tamper resistant stainless steel screws
- Oversized canopy enabling more secure mounting
- Canopy mount (field selectable) with two die cast 3/8” nipples and lock nuts and is suitable for conduit entry
- Fine grain brushed aluminum stencil face standard.
- Other finishes available
- Full size (field selectable) Chevron indicators
- Hidden knock out access points and universal mounting pattern
Electrical:
- LED light source with 25+ years life expectancy
- Battery backup models: 2.5 watts, .77 power factor
- 4 Hour battery backup
- 120 or 277 VAC field selectable input
- Circuitry includes - Zero current LVCO, Brownout sensing & Line-Latch
- Self-Diagnostic Battery monitoring (EM models only) - Flashing LED when battery needs replacing
- Electronic control circuit applies full wave, low ripple current to each LED thereby optimizing life and light output.
- Remote capable
- Other finishes available
- Full size (field selectable) Chevron indicators
- Hidden knock out access points and universal mounting pattern
Illumination:
- 1 W power consumption for single and double faced AC models
- Vivid illumination, 4 times the minimum UL 924 requirement
- Spectrally matched diffuser for superior visual brightness
Certifications:
- UL 924, NFPA 101 Life Safety Code, NFPA 70- NEC, and OSHA
- California Energy Commission (CEC) Title 20 Compliant
Warranty:
- 5 Year Limited Warranty
